EZY2 TRIM Pneumatic System

EZY2 TRIM – Head Depth Gauge Angle 23
EZY2 TRIM – Head Depth Gauge Back 12
EZY2 TRIM – Head Depth Gauge Angle 19

The IBEX EZY2 TRIM PNEUMATIC is the ultimate in Pneumatic Trimming system in the market. At the heart of the Pneumatic Trimming System is the IBEX Pneumatic motor; precision built to ensure a maximum, efficient use of air to deliver high levels of power and speed.

The distinct advantage of the EZY2 TRIM PNEUMATIC SYSTEM is its high speed coupled with the power enabling it to be used in numerous applications to improve yields. With all the flexibility of a pneumatic system, the powerful motor ensures smooth, clean cuts with reduced operator effort.

The fast Blade speeds allow effortless cutting and increased product yields. The powerful Motor and robust planetary gearbox produce high power to effortlessly tackle the difficult fat removal and meat recovery applications.

Advantages of the EZY2 TRIM Pneumatic System

    • Increased Yields and Profits

The fast Blade speeds allow effortless cutting and increases yields significantly by slicing through meat with ease, making bone trimming fast and efficient, while reducing operator effort.
The high power effortlessly tackles any fat removal and meat recovery applications.

    • Lower Ownership Cost

Direct drive system removes the need for expensive spare parts
Interchangeable parts and durable
Multiple Head compatibility – one hand piece can drive all IBEX Trimmer Heads (35, 52, 69, 90, 128 & 180mm)

    • Improved Comfort and Safety

Plug in anywhere there is air supply
Two Hand start hand pieces for Improved Operator Safety
Smoother, cleaner cuts with reduced operator effort
Improved comfort with simple lever location adjustment to suit
Easy to use and maintain – the IBEX Trimmer is easily dismantled and assembled

The IBEX Pneumatic System is designed specifically to deliver high Blades speeds and high Power.

EZY2 TRIM - HEADS
The modular EZY2 TRIM Head design allows for:


  • All pinions have same spline drive.

  • Streamlined, lighter and more ergonomic with built in thumb rest.

  • Faster blade speed with no increase in cable speed.

  • New blade keeper plate to improve performance and reduce wear.

  • Quick, simple and consistent blade changing procedure.

  • Universal design for left or right hand options.

The IBEX Pneumatic Handle

The IBEX Pneumatic Handle is robust and simple in design, ensuring that maintenance is minimized. The Motor and the Gearbox components are built to be stronger, to wear less and last longer.


The Pneumatic Systems incorporate a lock nut assembly which allows the handle and trigger to be rotated relative to the trimmer head, enabling the operator to maximize the orientation and obtain the most comfortable work position.

EZY TRIM Pneumatic Specifications
Pressure90 PSI or 6 Bar
Air Consumption16CF or 453 LPM
Trimming Hand Piece
EZY2 TRIM Electric
EZY2 TRIM Pneumatic
BEEF
Small Bone Trimming
Y
Y
Hot Fat Trimming
Y
Y
Cold Fat Trimming
Y
Y
Liver De-Spotting
Y
Y
Beef Heads
Y
Y
Beef Skirt Removal
Y
Y
External Light Fat Removal
Y
Y
Ribs
Y
Y
Large Intestines
Y
Y
Feather Bone Removal
Y
Y
Spinal Cord
Y
Y
Internal Beef Fat Removal - Vacuum Suction
Y
Y
Button Bones Removal
Y
Y
Strip Bones Removal
Y
Y
LAMB
Tenderloin Removal
Y
Y
PORK
Small Bone Trimming
Y
Y
Pork Backs & Loin De-Fatting
Y
Y
Ham De-Fatting
Y
Y
Pork Legs De-Fatting
Y
Y
Rind Patches Removal
Y
Y
Tenderloin Removal
Y
Y
Removing Pig Eyes
Y
Y
Pig Heads
Y
Y
Ear Canal Removal
Y
Y
Pork Neck Bone
Y
Y
Pork Bellies De-Fatting
Y
Y
POULTRY
Chicken Thigh De-Boning
Y
Y
FISH
Slicing Smoked Salmon
Y
Y
Light Fish Slicing
Y
Y
Filleting
Y
Y
Shaping
Y
Y
Fat Removal on Salmon
Y
Y
Removal of Dark Meat (E.g. Tuna)
Y
Y
Removal of Bloodline in Salmon
Y
Y

IBEX Trimmer Blades

In addition to the standard blades which are made of carbon steel, the IBEX Trimmer Blades are available in the knife quality stainless steel. This means the blades stay sharp for a longer time, increasing production and reducing downtime for honing to maintain an edge.


Blade Type
Head Size
35mm
52mm
69mm
90mm
128mm
180mm
Hooked
Y
Y
Y
Y
Straight
Y
Y
Y
Y
Dished
Y
Y
Y
Flat
Y
Conical
Y
Y
Straight Blade
Hooked Blade
Conical Blade
Specialised Conical Blades
Dished Blade
Flat Blade

Product Applications

The following guide is an indication of which tools and blade types should be used for specific applications. Ensure that the correct tool is used for each application.

Blade Types: S=Straight, H=Hooked, D=Dished, F=Flat, C=Conical

Trimmer Head
35mm
52mm
69mm
90mm
128mm
180mm


Trimming Hand Piece

35mm

52mm

69mm

90mm

128mm

180mm
BEEF
Small Bone Trimming
Straight
Straight
-
-
-
-
Hot Fat Trimming
-
-
-
Dished
Dished
Dished
Cold Fat Trimming
-
-
-
Dished
Flat
-
Liver De-Spotting
Straight
-
-
-
-
-
Beef Heads
-
Straight
-
-
-
-
Beef Skirt Removal
-
-
-
-
Dished
Dished
External Light Fat Removal
-
-
-
Dished
Dished*
-
Ribs
Straight
Straight
-
-
-
-
Large Intestines
Straight
-
-
-
-
-
Feather Bone Removal
-
-
Hooked
Hooked
-
-
Spinal Cord
Conical
-
-
-
-
-
Internal Beef Fat Removal - Vacuum Suction
-
Hooked
-
-
-
-
Button Bones Removal
-
Straight
-
-
-
-
Strip Bones Removal
-
Straight
-
-
-
-
LAMB
Tenderloin Removal
-
Straight
Straight
-
-
-
PORK
Small Bone Trimming
Straight
Straight
-
-
-
-
Pork Backs & Loin De-Fatting
-
-
-
Dished
Dished / Flat
-
Ham De-Fatting
-
-
-
-
Dished*
-
Pork Legs D-Fatting
-
-
-
-
Dished
-
Rind Patches Removal
-
-
-
-
Dished
-
Tenderloin Removal
-
-
Straight
Straight
-
-
Removing Pig Eyes
Straight
Straight
-
-
-
-
Pig Heads
-
Straight
-
-
-
-
Ear Canal Removal
-
Straight
-
-
-
-
Pork Neck Bone
-
Straight
-
-
-
-
Pork Bellies De-Fatting
-
-
-
Dished
Dished
-
POULTRY
Chicken Thigh De-Boning
-
Straight
-
-
-
-
FISH
Slicing Smoked Salmon
-
-
-
Dished*
Dished*
-
Light Fish Slicing
-
-
-
Dished*
Dished*
-
Filleting
-
-
-
Dished
Dished
-
Shaping
-
-
-
Dished*
Dished*
-
Fat Removal on Salmon
-
-
-
Dished*
Dished*
-
Removal of Dark Meat (E.g. Tuna)
-
-
-
Dished
Dished
-
Removal of Bloodline in Salmon
Straight
-
-
-
-
-
* Depth gauge.

* = can be used with a depth gauge

The IBEX Hand Strap has been specifically designed to fit perfectly onto either the IBEX FF or FP Electric Trimmers to provide a comfortable and secure grip.

It is fully adjustable to allow the operator to flex and release their grip without having to put the tool down, and assists in preventing Carpel Tunnel Syndrome.

Hygienic and constructed from hard-wearing PVC, this strap is built to last.

The IBEX hand strap is the ideal way to increase your comfort while cutting.

Product Description

The IBEX Hand Strap significantly improves operator comfort and enables a strong, secure grip on the hand piece, allowing the user to flex and release grip as required without having to put the trimmer down.

Fully adjustable, the IBEX Hand Strap will fit any hand size and either FP or FF Electric Trimming Systems. The Hand Strap also reduces accidental tool damage from operators dropping the tool. Designed using hard-wearing PVC the Hand Strap is built to be both hygienic and to last. The IBEX Hand Strap is the perfect way to increase operator comfort while cutting.

Hand Strap Summary
    • Reduces Tool Damage from Accidental Droppings
    • Flex & Release Grip Without Putting Down Tools
    • Assists in Preventing Carpel Tunnel Syndrome
    • Provides a Secure, More Comfortable Grip
    • Fully Adjustable
    • Hygienic and Hard-wearing

The IBEX Thumb Rest is an optional attachment which fits either the IBEX Electric or Pneumatic Trimmer to improve operator comfort and trimmer control.

The ergonomic construction of the IBEX Thumb Rest fits well to the contours of operators’ hands, helping to alleviate strain and tension through the hand and forearm during continued use. It reduces cramping and fatigue, allowing operators to work for extended periods without stoppages.

Made of corrosion resistant stainless steel the IBEX Thumb Rest is available in both right and left hand variants and 6 different positions to suit any user.

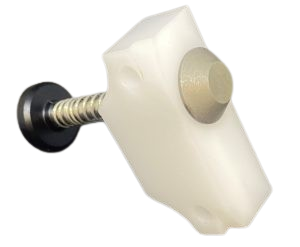

Maintain razor-sharp edge during processing with the Trimmer Head Honing Device. With the push of the button the device removes the rolled edge on the inside, so the blade is back to optimum performance. The Honing Device is available as an option on the 90, 128 and 180 Trimmer Heads.

Maximise your yields with a choice of Depth Gauges for the 90 and 128 Trimmer Heads for precision cutting.

Trim just the right amount of product every time whether the application is removing fat or skin.

The Depth Gauge is also highly effective for training operators in new applications.

The Depth Gauges are also available with Honing Devices to combine accurate cuts with the benefit of maintaining a sharp edge.

Quick Overview

The New improved EZY TRIM Heads provide improved yields through the patented Head design resulting in unmatched Blade cutting speeds. The improved Blade change mechanism makes Blade replacement a simple process and reduces downtime without the need for multiple tools. The trimmer Heads are common for both the Electric and Pneumatic EZY TRIM versions.

  • Improved yields through the patented Head design resulting in unmatched Blade cutting speeds
  • Optimising Pinion drive to a single Pinion drive size for 52,69,90 and 128 Trimmer Heads. 35 and 180 Trimmer Heads in EBC
  • Faster Blade Speeds
  • New Blade Keeper system eliminating misalignment and need for multiple tools
  • Quick, Simple and consistent Blade changing procedure
  • Improved hygiene through built-in ergonomic internal thumb rests and use of food grade material
  • Reduced cost of ownership through longer lasting and many common parts throughout the Head size range
Quick Overview

The common design elements of the EBC Trimmer Heads mean you save time in cleaning and maintenance, while common parts reduce inventory requirements.

The EBC Trimmer Heads are interchangeable; they fit all IBEX drive units (both FF & FP, in either Electric or Pneumatic) - should requirements change, don’t buy another drive system, simply purchase the relevant head and screw it on.

Increase Yields, Reduce Downtime and Save on Operating Costs

The IBEX EBC Trimmer Heads make removing and replacing the blade a simple process - reducing your downtime. Simply loosen the keeper plate screws and slide the keeper plate down.

EBC = Easy Blade Change
  • Fast, simple blade change
  • Knife quality, no rust stainless steel blades for efficient cutting
  • Machined high grade nickel coated aluminium frames
  • Common spares reduce inventory
  • Save time in cleaning and maintenance
  • Stainless needle roller bearings for improved life
  • Hardened housing for longer life and less wear
  • Interchangeable Trimmer Heads fit on all IBEX and current drive units *
  • Wide range of Trimmer Head Sizes (35, 52, 69, 90, 128, 180 mm)
The IBEX Pneumatic is the ultimate in Pneumatic Trimming Systems. The powerful drive system makes light work of any trimming application.

The IBEX Pneumatic Drive system can be used in numerous and differing applications to improve yields and quality of product. With all the flexibility of a pneumatic system, the powerful motor ensures smooth, clean cuts with reduced operator effort.

One of the IBEX Pneumatic Trimmer distinctive advantages lies in its FF Series (High Speed) with the staggering bone trimming output speed of 15,000 RPM to retrieve more meat at a faster rate; it is conceivably the fastest bone trimmer in the market!

Available in 2 options:
    • FF Series (High Speed) Pneumatic model designed for bone trimming
    • FP Series (High Torque) Pneumatic model with increased torque for stubborn fat removal and tougher applications
FF (High Speed) Pneumatic

The IBEX FF Pneumatic is designed specifically for efficient bone trimming with a staggering output speed of 15,000 RPM, the FF (High Speed) Pneumatic Trimmer, is conceivably the fastest bone trimmer in the market.

The FF Pneumatic Trimmer increases yields significantly by slicing through meat with ease, making bone trimming fast and efficient, while reducing operator effort.

This incredibly fast blade speed allows effortless cutting and increased product yields. Rather than utilizing the high-power output to produce torque, the IBEX FF Pneumatic uses a direct drive system, with minimal moving parts to significantly enhance trimming applications.

With very few spare or replacement parts needed for the FF Pneumatic Trimmer, maintenance & service is easy and quality construction ensures a long lifespan.

FP (High Torque) Pneumatic

The FP Pneumatic delivers high torque and fast blade speed to effortlessly tackle the often difficult fat removal and meat recovery applications. Providing consistently high power levels, the FP reduces operator stress.

The powerful motor and robust planetary gearbox of the IBEX FP Pneumatic produces a high torque output, ensuring fast blade speeds are maintained and blade stall is reduced.

FP Pneumatic Specifications *
FF Pneumatic Specifications *
Speed4,000 RPMSpeed15,000 RPM
Pressure90 PSI or 6 BarPressure90 PSI or 6 Bar
Air Consumption16 CFM or 453 LPMAir Consumption16 CFM or 453 LPM
* Specifications subject to change
